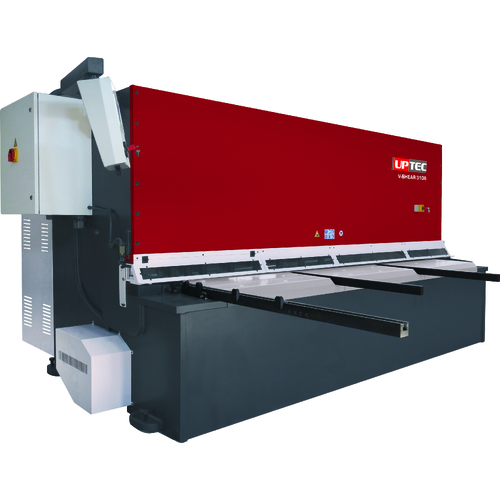

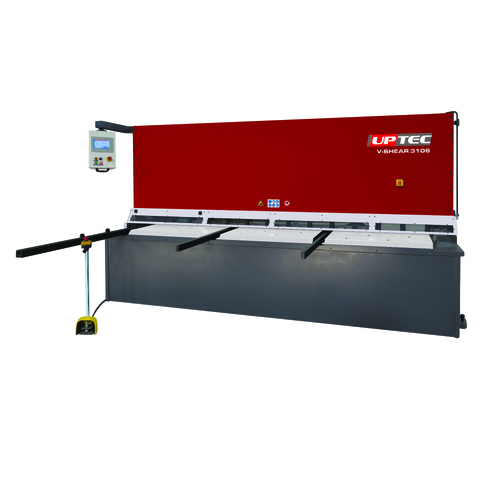

The displayed price is for the V-Shear 3106 model with a Cutting length of 3100 mm, 6 mm ST 42 maximum thickness and it includes transport, installation and training.

For the other configurations in the V-Shear Series, click on the form.

Standart Equipments:

•  CE Norm
•  CNC Control - Cybelec CybTouch 8 (color-touch screen)
•  Automatic cutting length (stroke) adjustment controlled by CNC
•  Automatic ball screw backgauge with 1000 mm stroke controlled by CNC
•  Automatic rake angle adjustment controlled by CNC
•  Automatic & hydraulic blade gap adjustment controlled by CNC
•  Automatic calculations of cutting functions according to material specifications
•  Automatic swing-up backgauge
•  1 meter flip-up openable finger guard with switch protection
•  Back side protection panels
•  Back light barrier
•  Rear sheet sliding plates
•  Shadow line illumination
•  Squaring arm with ruler & T-slot & tilting stop
•  Support arms
•  Ball transfer tables
•  4 sided top & bottom blades
•  European hydraulic system
•  European electric system
